CAP ALUM 270UF 20% 50V RADIAL

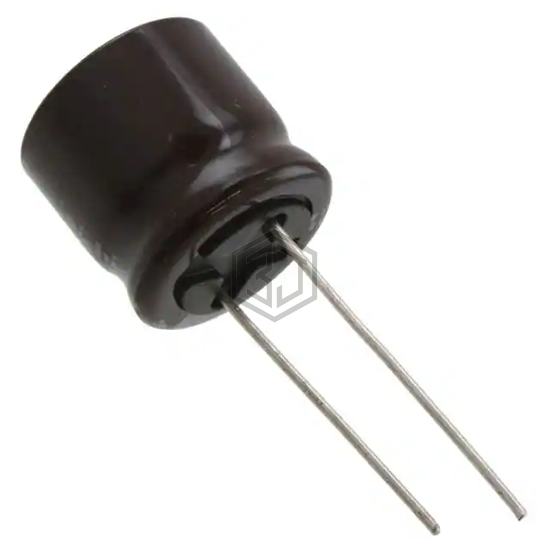

UPM1H271MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 9,978
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.12 A @ 10 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1H271MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1H271MPD | Nichicon | CAP ALUM 270UF 20% 50V RADIAL | 96% | View |
| EEU-FC1V271 | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 85% | View |
| UPA1V271MPD6 | Nichicon | CAP ALUM 270UF 20% 35V RADIAL | 77% | View |
| ELXV630ELL271MK25S | United Chemi-Con | CAP ALUM 270UF 20% 63V RADIAL | 77% | View |
| B41888C8277M000 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 63V RADIAL | 71% | View |
| ELXY250ELL271MJ16S | United Chemi-Con | CAP ALUM 270UF 20% 25V RADIAL | 56% | View |
