CAP ALUM 2200UF 20% 50V RADIAL

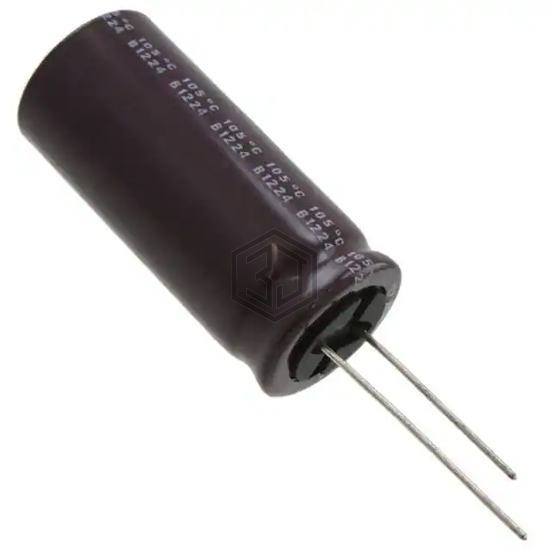

UPM1H222MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,264
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.51 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.79 A @ 10 kHz |
| Impedance | 24 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1H222MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213650222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 74% | View |
| RXW222M1EBK-1625S | SURGE | CAP ALUM 2200UF 20% 25V RADIAL | 73% | View |
| UPA1E222MHD6TN | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 72% | View |
| ELXY250EMC222MK40S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 71% | View |
| MAL211917222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 40V AXIAL | 62% | View |
| MAL214635222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 62% | View |
