CAP ALUM 680UF 20% 25V RADIAL

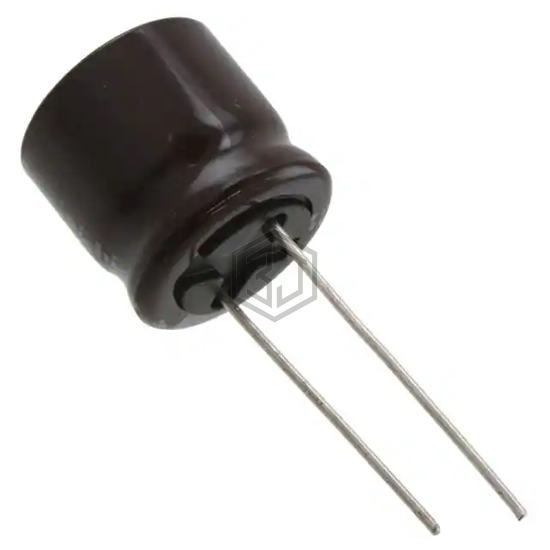

UPM1E681MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,890
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 55 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E681MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225098685E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 74% | View |
| EEU-FC1C681B | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL | 74% | View |
| RXW681M1HBK-1325S | Surge | CAP ALUM 50V POLAR | 74% | View |
| MAL211826681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V AXIAL | 71% | View |
| ELXV630EC3681ML30S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 68% | View |
| B41858C9687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 100V RADIAL | 61% | View |
Submit your RFQ for UPM1E681MHD6 and get a quote within 24 hours.
