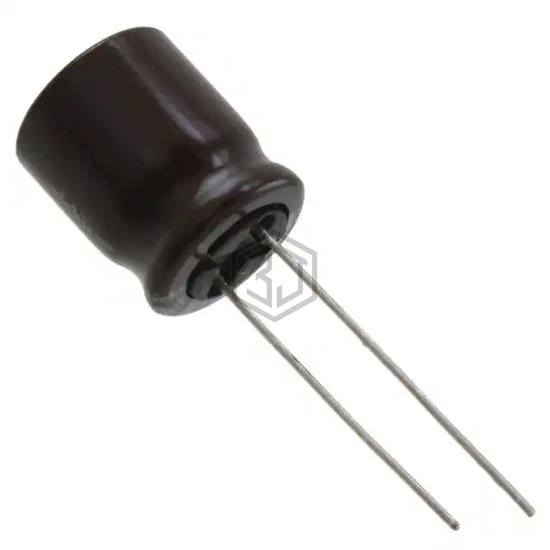

CAP ALUM 68UF 20% 25V RADIAL
UPM1E680MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,954
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 260 mA @ 10 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E680MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| USF1E680MDD1TA | Nichicon | CAP ALUM 68UF 20% 25V RADIAL | 81% | View |
| EEA-GA1E680H | Panasonic Electronic Components | CAP ALUM 68UF 20% 25V RADIAL | 76% | View |
| ELXY630ELL680MH15D | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 72% | View |
| EEU-HD1E680B | Panasonic Electronic Components | CAP ALUM 68UF 20% 25V RADIAL | 71% | View |
| EEU-FC1C680B | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V RADIAL | 63% | View |
| 672D686H150FV3J | Vishay Sprague | CAP ALUM 68UF 150V RADIAL | 56% | View |
Submit your RFQ for UPM1E680MED1TA and get a quote within 24 hours.
