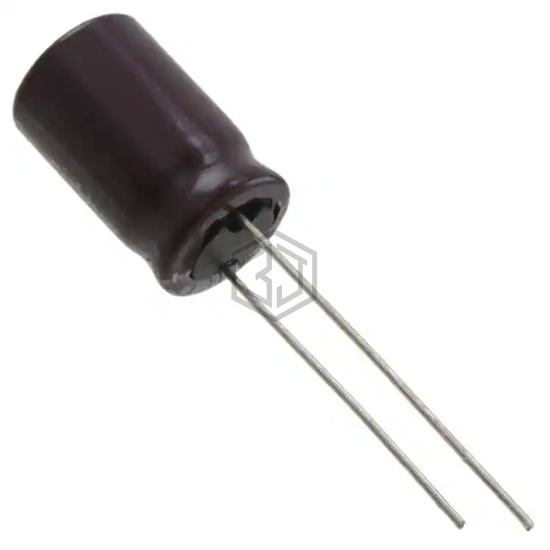

CAP ALUM 220UF 20% 25V RADIAL
UPM1E221MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,638
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 485 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 10 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E221MPD6TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888C5227M006 | EPCOS - TDK Electronics | CAP ALUM 25V POLAR | 94% | View |
| ELXY350ELL221MH20D | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 80% | View |
| 860160574019 | Würth Elektronik | CAP ALUM 220UF 20% 35V RADIAL | 77% | View |
| EEU-FC1C221BJ | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V RADIAL | 75% | View |
| 517D227M050CD6AE3 | Vishay Sprague | CAP ALUM 220UF 20% 50V RADIAL | 72% | View |
| MAL213638221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 61% | View |
