CAP ALUM 1800UF 20% 25V RADIAL

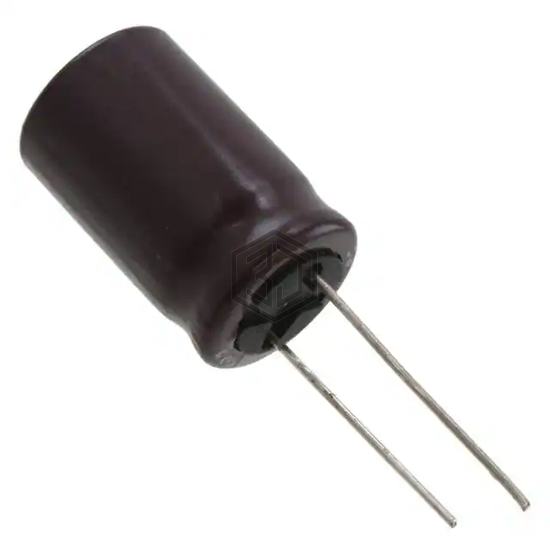

UPM1E182MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,407
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.97 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.19 A @ 10 kHz |
| Impedance | 31 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E182MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1E182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RADIAL | 96% | View |
| EEU-FK1E182 | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RAD TH | 93% | View |
| ELXZ250ELL182ML20S | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 91% | View |
| B41858E7188M | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 35V RADIAL | 84% | View |
| MAL214650182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 81% | View |
| B41890A7188M | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 35V RADIAL | 72% | View |
