CAP ALUM 1800UF 20% 25V RADIAL

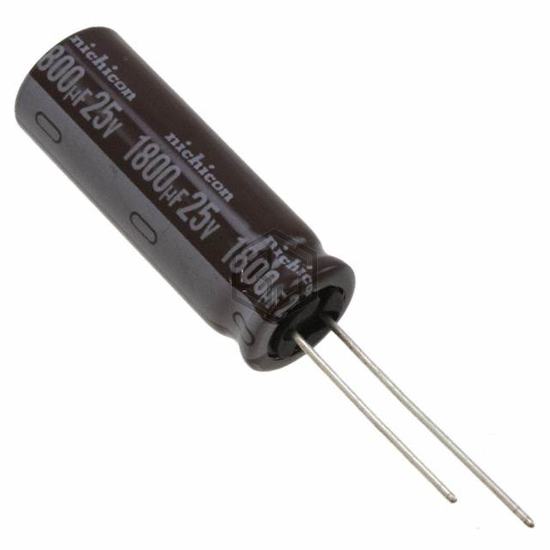

UPM1E182MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.23 A @ 10 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E182MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 757D188M025EK3D | Vishay Sprague | CAP ALUM 1800UF 20% 25V RADIAL | 93% | View |
| RXK182M1VBK-1632S | Surge | CAP ALUM 35V POLAR | 88% | View |
| MAL214660182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 82% | View |
| ELXZ350ELL182MK40S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 78% | View |
| EEU-FC1C182SB | Panasonic Electronic Components | CAP ALUM 1800UF 20% 16V RADIAL | 77% | View |
| EEU-FC1A182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 10V RADIAL | 62% | View |
Submit your RFQ for UPM1E182MHD and get a quote within 24 hours.
