CAP ALUM 1500UF 20% 25V RADIAL

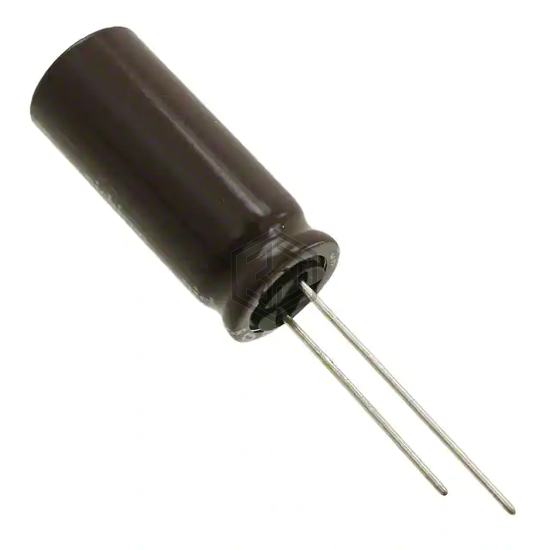

UPM1E152MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,002
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.98 A @ 10 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E152MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215066152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 91% | View |
| MALREKC00FJ415E00F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1.5MF 20% 25V RADIAL | 91% | View |
| MAL213696156E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 90% | View |
| MAL213696155E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 90% | View |
| B41888D4158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 16V RADIAL | 80% | View |
| MAL213660152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 79% | View |
Submit your RFQ for UPM1E152MHD and get a quote within 24 hours.
