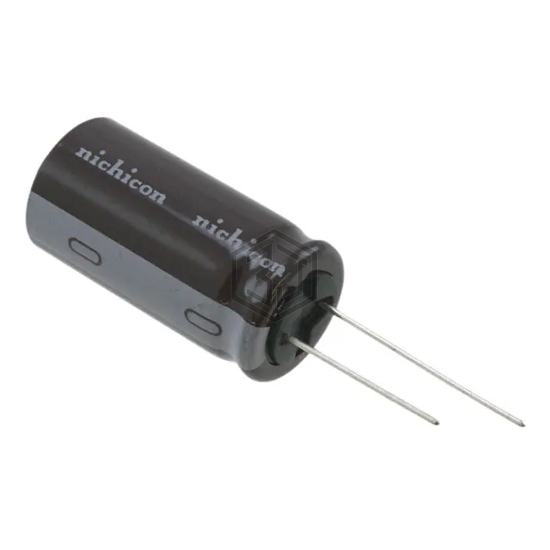

CAP ALUM 6800UF 20% 16V RADIAL
UPM1C682MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,854
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.05 A @ 10 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1C682MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1C682MHD | Nichicon | CAP ALUM 6800UF 20% 16V RADIAL | 80% | View |
| UVZ1C682MHD1CV | Nichicon | CAP ALUM 16V POLAR | 80% | View |
| MAL213694685E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 75% | View |
| EKMG250ELL682MMP1S | United Chemi-Con | CAP ALUM 6800UF 20% 25V RADIAL | 72% | View |
| EEU-FC0J682 | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 71% | View |
| MAL211814682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V AXIAL | 56% | View |
