CAP ALUM 68UF 20% 16V RADIAL

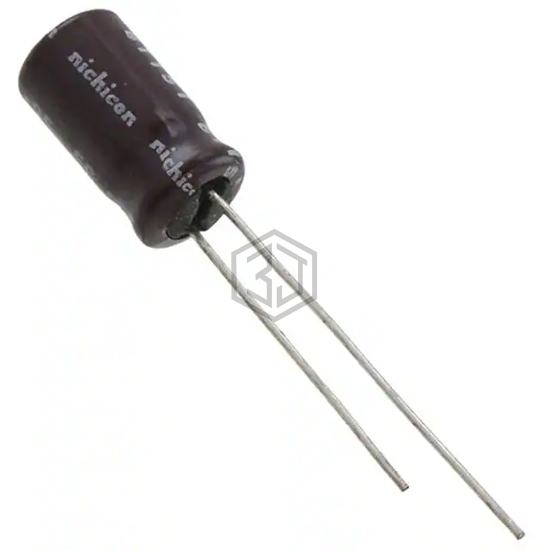

UPM1C680MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,382
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 220 mA @ 10 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1C680MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 686RZM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 68UF 20% 16V RADIAL | 75% | View |
| MAL212385689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 16V AXIAL | 75% | View |
| EKMQ500ELL680MF11D | United Chemi-Con | CAP ALUM 68UF 20% 50V RADIAL | 72% | View |
| MAL212384689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 10V AXIAL | 67% | View |
| EY2A680MCH0815S | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 65% | View |
| 601D686F150FP1 | Vishay Sprague | CAP ALUM 68UF 150V AXIAL | 56% | View |
