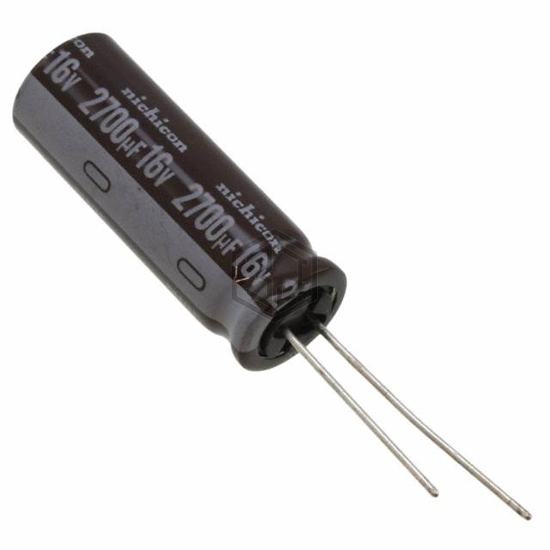

CAP ALUM 2700UF 20% 16V RADIAL
UPM1C272MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,177
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.23 A @ 10 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1C272MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ160ELL272ML20S | United Chemi-Con | CAP ALUM 2700UF 20% 16V RADIAL | 94% | View |
| ERZA200VTS272WQ41C | United Chemi-Con | CAP ALUM 2700UF 20V RADIAL | 86% | View |
| MAL226065272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 81% | View |
| 860160378039 | Würth Elektronik | CAP ALUM 2700UF 20% 16V RADIAL | 80% | View |
| UPA1V272MHD6 | Nichicon | CAP ALUM 2700UF 20% 35V RADIAL | 69% | View |
| ELXV6R3ETD272MK25S | United Chemi-Con | CAP ALUM 2700UF 20% 6.3V RADIAL | 62% | View |
