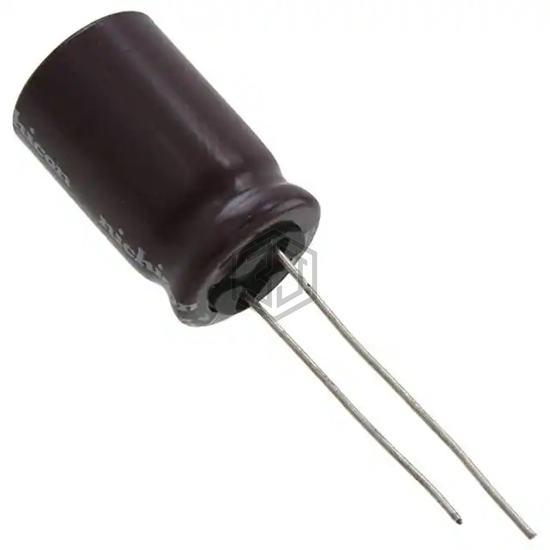

CAP ALUM 1200UF 20% 16V RADIAL
UPM1C122MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,868
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.43 A @ 10 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1C122MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1C122MPH | Nichicon | CAP ALUM 1200UF 20% 16V RADIAL | 98% | View |
| EEU-FC1C122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 16V RADIAL | 97% | View |
| UPA1A122MPD1TA | Nichicon | CAP ALUM 1200UF 20% 10V RADIAL | 80% | View |
| 604D122F020GJ2 | Vishay Sprague | CAP ALUM 1200UF 20V AXIAL | 70% | View |
| 860160274032 | Würth Elektronik | CAP ALUM 1200UF 20% 10V RADIAL | 62% | View |
| EEU-FC0J122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 6.3V RADIAL | 61% | View |
