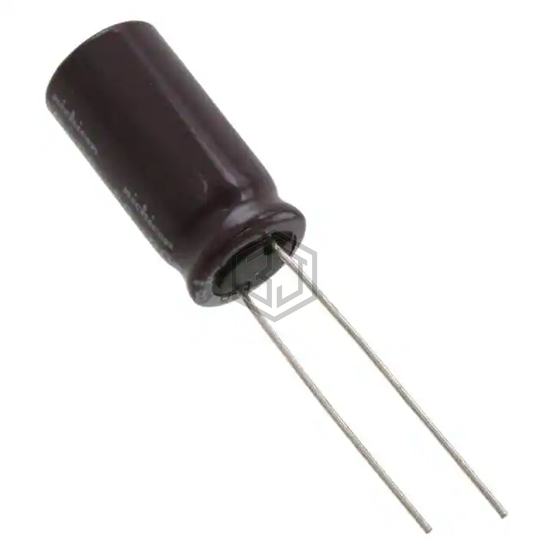

CAP ALUM 820UF 20% 10V RADIAL
UPM1A821MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,530
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 835 mA @ 120 Hz |
| Ripple Current @ High Frequency | 985 mA @ 10 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A821MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888C3827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 10V RADIAL | 91% | View |
| B41858C3827M8 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 10V RADIAL | 89% | View |
| UPA1C821MPD1TD | Nichicon | CAP ALUM 820UF 20% 16V RADIAL | 76% | View |
| MAL213656821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 25V RADIAL | 69% | View |
| 860160475026 | Würth Elektronik | CAP ALUM 820UF 20% 25V RADIAL | 62% | View |
| MAL214631821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V RADIAL | 56% | View |
