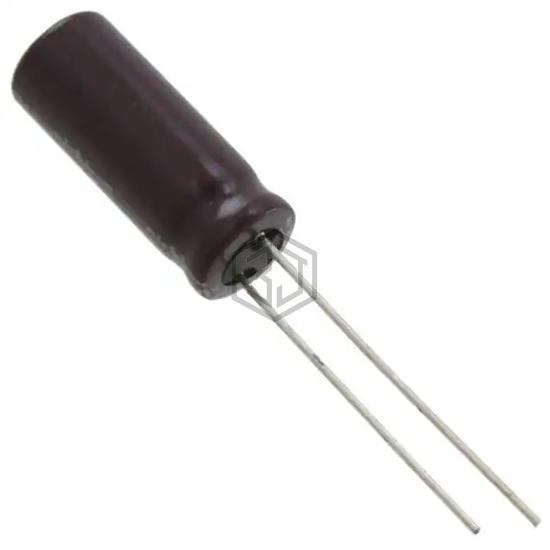

CAP ALUM 680UF 20% 10V RADIAL
UPM1A681MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,302
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 660 mA @ 120 Hz |
| Ripple Current @ High Frequency | 795 mA @ 10 kHz |
| Impedance | 85 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A681MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY100ETD681MJ16S | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 93% | View |
| UPM0J681MPD6TD | Nichicon | CAP ALUM 680UF 20% 6.3V RADIAL | 83% | View |
| EEU-FK0J681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 6.3V RAD TH | 75% | View |
| EY1C681MP51015E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 74% | View |
| MAL211815681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V AXIAL | 59% | View |
| 687KXM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 680UF 20% 25V RADIAL | 52% | View |
Submit your RFQ for UPM1A681MPD1TA and get a quote within 24 hours.
