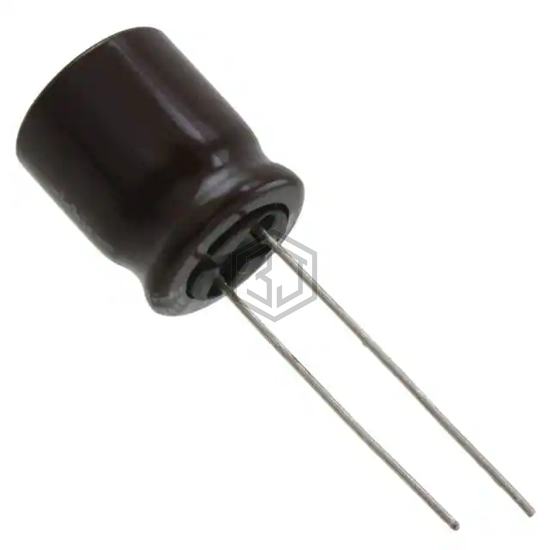

CAP ALUM 68UF 20% 10V RADIAL
UPM1A680MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,917
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 97 mA @ 120 Hz |
| Ripple Current @ High Frequency | 155 mA @ 10 kHz |
| Impedance | 800 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A680MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 600D686F020KD4 | Vishay Sprague | CAP ALUM 68UF 20V AXIAL | 61% | View |
| 672D686F060DM4D | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 56% | View |
| EKMG500EC3680MHB5D | United Chemi-Con | CAP ALUM 68UF 20% 50V RADIAL | 56% | View |
| 672D686F060DM4J | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 56% | View |
| 672D686H060DM5C | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 56% | View |
| 672D686H060DM3G | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 56% | View |
Submit your RFQ for UPM1A680MDD1TA and get a quote within 24 hours.
