CAP ALUM 5600UF 20% 10V RADIAL

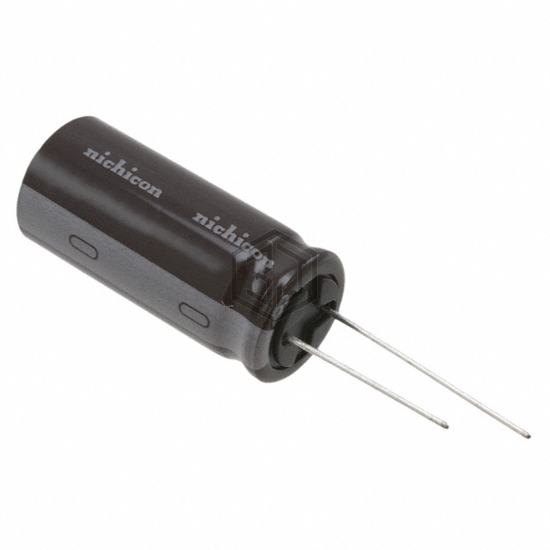

UPM1A562MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.34 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.61 A @ 10 kHz |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A562MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D568M010FV4D | Vishay Sprague | CAP ALUM 5600UF 20% 10V RADIAL | 100% | View |
| B41888D3568M9 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 10V RADIAL | 96% | View |
| 860080280025 | Würth Elektronik | CAP ALUM 5600UF 20% 10V RADIAL | 90% | View |
| UPA1C562MHD | Nichicon | CAP ALUM 5600UF 20% 16V RADIAL | 83% | View |
| MAL214665562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 16V RADIAL | 80% | View |
| UPA0J562MHD6 | Nichicon | CAP ALUM 5600UF 20% 6.3V RADIAL | 79% | View |
