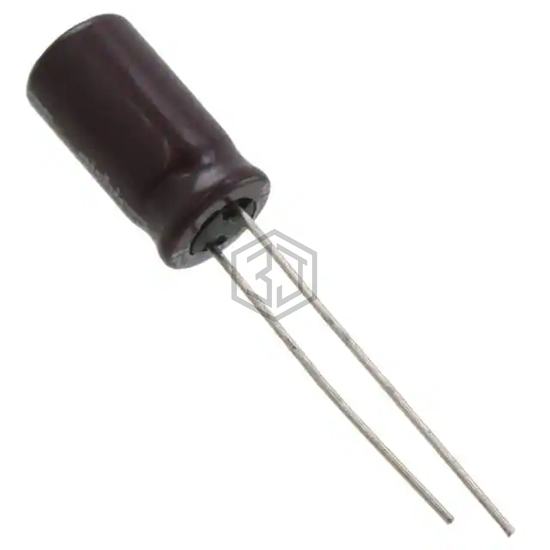

CAP ALUM 470UF 20% 10V RADIAL
UPM1A471MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,635
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 475 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 120 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A471MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV6R3ELL471MJC5S | Chemi-Con | CAP ALUM 6.3V POLAR | 77% | View |
| MALREKB05PB347D00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 71% | View |
| B41858A4477M8 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 16V RADIAL | 69% | View |
| ECA-1CHG471BJ | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 67% | View |
| 25NXA470MEFC10X20 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 60% | View |
| EEU-FC1E471LC | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 55% | View |
Submit your RFQ for UPM1A471MPD1TD and get a quote within 24 hours.
