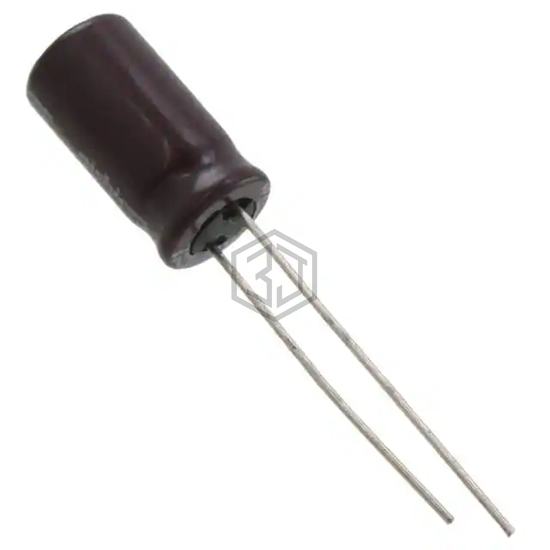

CAP ALUM 470UF 20% 10V RADIAL
UPM1A471MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 458
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 475 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 120 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A471MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D477H012DM5C | Vishay Sprague | CAP ALUM 470UF 12V RADIAL | 88% | View |
| EKMG100ELL471MHB5D | United Chemi-Con | CAP ALUM 470UF 20% 10V RADIAL | 79% | View |
| RJA471M1ABK-0611S | Surge | CAP ALUM 10V POLAR | 79% | View |
| UPM1C471MPD1TA | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 73% | View |
| MALREKB00PB347DN0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 71% | View |
| EKMQ101ELL471ML25S | United Chemi-Con | CAP ALUM 470UF 20% 100V RADIAL | 58% | View |
Submit your RFQ for UPM1A471MPD and get a quote within 24 hours.
