CAP ALUM 3900UF 20% 10V RADIAL

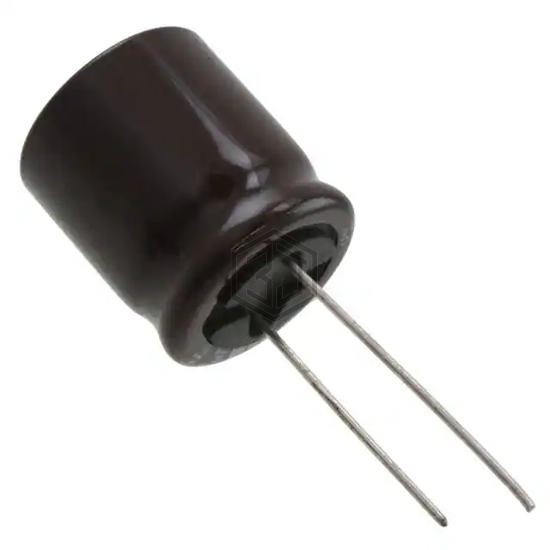

UPM1A392MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 6,932
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.84 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.05 A @ 10 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A392MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858D3398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 10V RADIAL | 96% | View |
| EEU-FK1A392B | Panasonic Electronic Components | CAP ALUM 3900UF 20% 10V RAD TH | 95% | View |
| RXK392M1ABK-1620S | Surge | CAP ALUM 10V POLAR | 94% | View |
| ELXZ160ELL392ML25S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 79% | View |
| MAL214656392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 25V RADIAL | 66% | View |
| ELXV250ELL392ML40S | United Chemi-Con | CAP ALUM 3900UF 20% 25V RADIAL | 64% | View |
