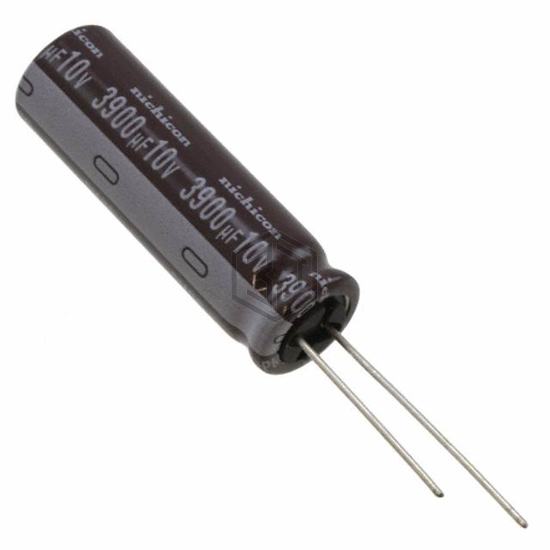

CAP ALUM 3900UF 20% 10V RADIAL
UPM1A392MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 6,763
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.46 A @ 10 kHz |
| Impedance | 24 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A392MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 757D398M010EK4O | Vishay Sprague | CAP ALUM 3900UF 20% 10V RADIAL | 95% | View |
| ELXY100EC3392MK40S | United Chemi-Con | CAP ALUM 3900UF 20% 10V RADIAL | 94% | View |
| LXY10VB392M12X40LL | United Chemi-Con | CAP ALUM 3900UF 20% 10V RADIAL | 94% | View |
| B41690A5398Q001 | EPCOS - TDK Electronics | CAP ALUM 3900UF 25V AXIAL | 59% | View |
| 601D398G040JT2 | Vishay Sprague | CAP ALUM 3900UF 40V AXIAL | 56% | View |
| B41888C5398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 25V RADIAL | 55% | View |
Submit your RFQ for UPM1A392MHD and get a quote within 24 hours.
