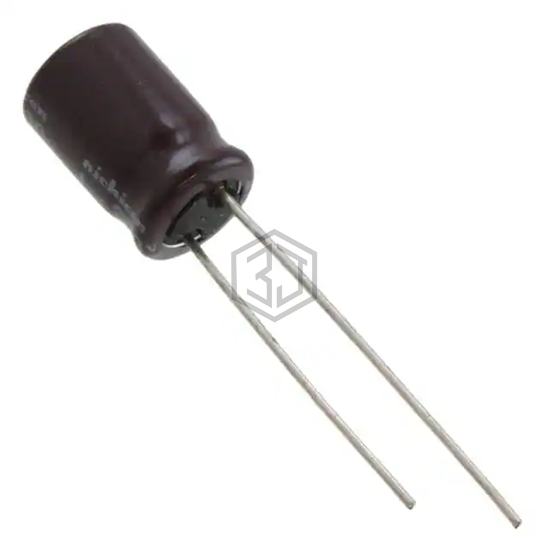

CAP ALUM 330UF 20% 10V RADIAL
UPM1A331MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,492
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 160 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A331MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1A331MGD1TA | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 88% | View |
| 860160373021 | Würth Elektronik | CAP ALUM 330UF 20% 16V RADIAL | 81% | View |
| UPM0J331MED | Nichicon | CAP ALUM 330UF 20% 6.3V RADIAL | 77% | View |
| UPW0J331MEH6 | Nichicon | CAP ALUM 330UF 20% 6.3V RADIAL | 72% | View |
| MAL211664331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 10V RADIAL | 70% | View |
| 337RZM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 35V RADIAL | 54% | View |
Submit your RFQ for UPM1A331MPD1TD and get a quote within 24 hours.
