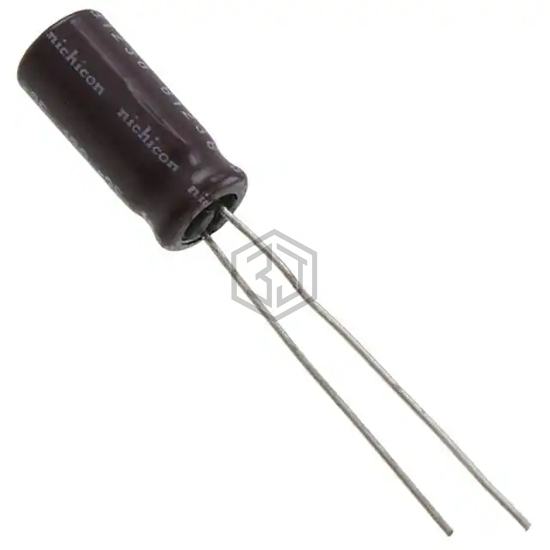

CAP ALUM 270UF 20% 10V RADIAL
UPM1A271MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,198
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 405 mA @ 10 kHz |
| Impedance | 200 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A271MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1A271MED1TA | Nichicon | CAP ALUM 270UF 20% 10V RADIAL | 100% | View |
| B41858D4277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 16V RADIAL | 79% | View |
| 678D277M035DG4D | Vishay Sprague | CAP ALUM 270UF 20% 35V RADIAL | 56% | View |
| 757D277H035CG4C | Vishay Sprague | CAP ALUM 270UF 35V RADIAL | 56% | View |
| UPA1E271MPD1TA | Nichicon | CAP ALUM 270UF 20% 25V RADIAL | 55% | View |
| B41858C5277M8 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 25V RADIAL | 51% | View |
