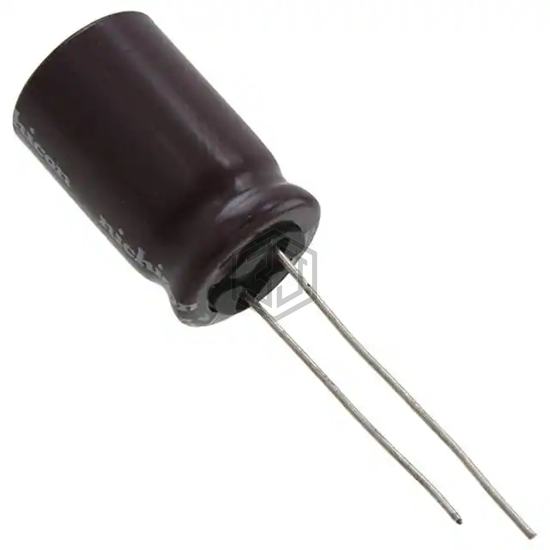

CAP ALUM 1800UF 20% 10V RADIAL
UPM1A182MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.32 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.47 A @ 10 kHz |
| Impedance | 39 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A182MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1A182MPD | Nichicon | CAP ALUM 1800UF 20% 10V RADIAL | 98% | View |
| EEU-FK1A182L | Panasonic Electronic Components | CAP ALUM 1800UF 20% 10V RAD TH | 95% | View |
| B41896C3188M | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 10V RADIAL | 89% | View |
| MAL213666182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 25V RADIAL | 69% | View |
| ELXV250EC3182ML25S | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 66% | View |
| ELXY350ELL182ML30S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 65% | View |
Submit your RFQ for UPM1A182MHD1TO and get a quote within 24 hours.
