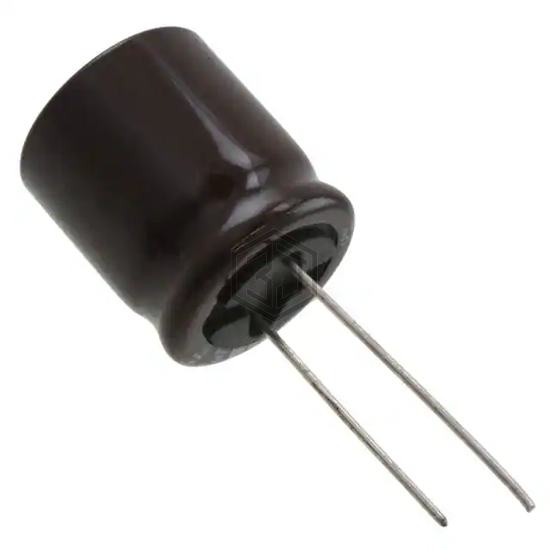

CAP ALUM 4700UF 20% 6.3V RADIAL
UPM0J472MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,432
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.72 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.92 A @ 10 kHz |
| Impedance | 32 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM0J472MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214054472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V RADIAL | 80% | View |
| UPA1A472MHD6TN | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 78% | View |
| 35PX4700MEFCGC16X35.5 | Rubycon | CAP ALUM 4700UF 20% 35V RADIAL | 74% | View |
| EEU-FK1C472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RAD TH | 68% | View |
| MAL224695473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 63% | View |
| 860080278024 | Würth Elektronik | CAP ALUM 4700UF 20% 10V RADIAL | 60% | View |
