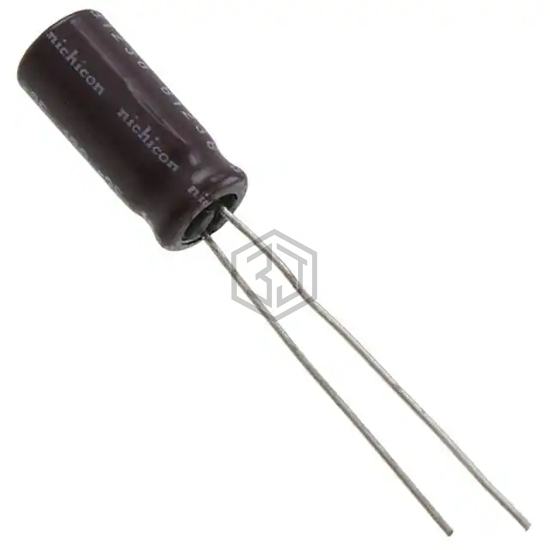

CAP ALUM 330UF 20% 6.3V RADIAL
UPM0J331MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,968
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 405 mA @ 10 kHz |
| Impedance | 200 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM0J331MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ0J331MED | Nichicon | CAP ALUM 330UF 20% 6.3V RADIAL | 94% | View |
| ELXY100ELL331MH12D | United Chemi-Con | CAP ALUM 330UF 20% 10V RADIAL | 77% | View |
| B41858D4337M8 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 16V RADIAL | 71% | View |
| 337KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 16V RADIAL | 63% | View |
| SEK331M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 35V RADIAL | 56% | View |
| ELXY250ELL331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 50% | View |
Submit your RFQ for UPM0J331MED1TA and get a quote within 24 hours.
