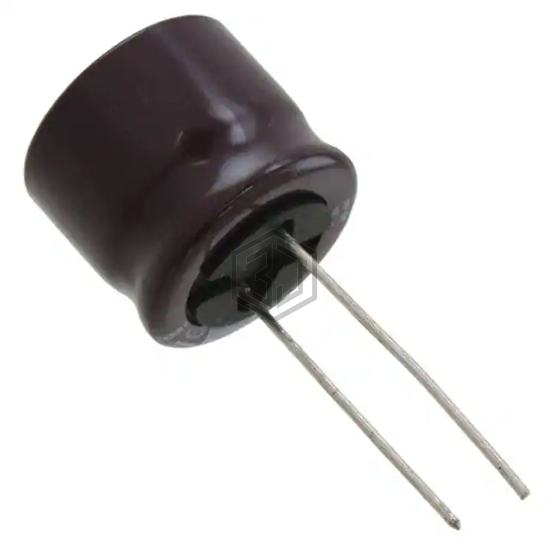

CAP ALUM 2700UF 20% 6.3V RADIAL
UPM0J272MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 628
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 10 kHz |
| Impedance | 44 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM0J272MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK272M0JBK-1030S | Surge | CAP ALUM 6.3V POLAR | 98% | View |
| UPA0J272MPD1TD | Nichicon | CAP ALUM 2700UF 20% 6.3V RADIAL | 93% | View |
| 301272U7R5L042E | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 7.5V RADIAL | 89% | View |
| MAL214665272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 69% | View |
| EEU-FK1C272B | Panasonic Electronic Components | CAP ALUM 2700UF 20% 16V RAD TH | 58% | View |
| MAL216055272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 54% | View |
Submit your RFQ for UPM0J272MHD6TN and get a quote within 24 hours.
