CAP ALUM 12000UF 20% 6.3V RADIAL

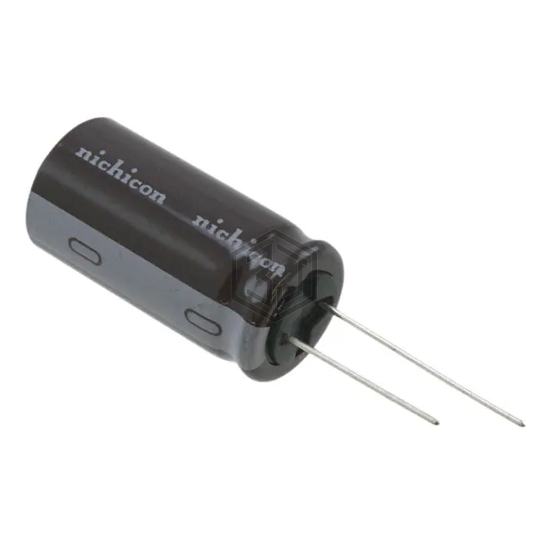

UPM0J123MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,174
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.05 A @ 10 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM0J123MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D119G7R5JT1 | Vishay Sprague | CAP ALUM 11000UF 7.5V AXIAL | 82% | View |
| EEU-FC1A123 | Panasonic Electronic Components | CAP ALUM 12000UF 20% 10V RADIAL | 77% | View |
| VPR123U6R3N2L | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 6.3V RADIAL | 76% | View |
| ELBG250ELL113AM40S | United Chemi-Con | CAP ALUM 11000UF 25V RADIAL | 70% | View |
| ELBK250ELL113AMP1S | United Chemi-Con | CAP ALUM 11000UF 25V RADIAL | 68% | View |
| THAS113M010AB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 11000UF 20% 10V FLATPCK | 67% | View |
Submit your RFQ for UPM0J123MHD and get a quote within 24 hours.
