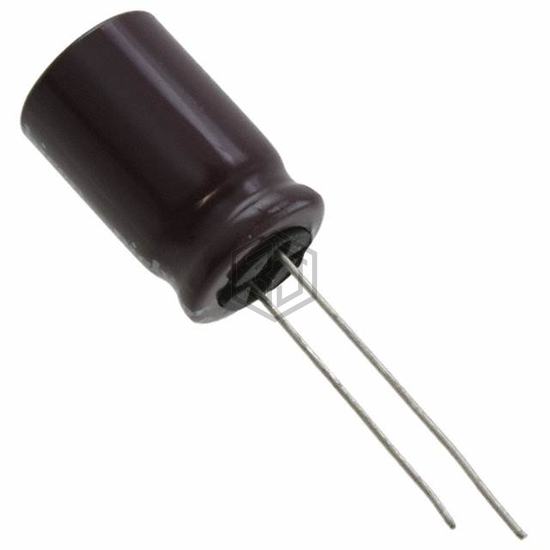

CAP ALUM 3.3UF 20% 450V RADIAL
UPJ2W3R3MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 749
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 48 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2W3R3MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2G3R3MPD | Nichicon | CAP ALUM 3.3UF 20% 400V RADIAL | 94% | View |
| UPS2G3R3MPD1TD | Nichicon | CAP ALUM 3.3UF 20% 400V RADIAL | 86% | View |
| ECA-2VHG3R3 | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 350V RADIAL | 82% | View |
| MALREKE05DE133P00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 450V RADIAL | 82% | View |
| 600D335G250DC5 | Vishay Sprague | CAP ALUM 3.3UF 250V AXIAL | 62% | View |
| 50YXH3.3MEFC5X11 | Rubycon | CAP ALUM 3.3UF 20% 50V RADIAL TH | 56% | View |
Submit your RFQ for UPJ2W3R3MHD1TO and get a quote within 24 hours.
