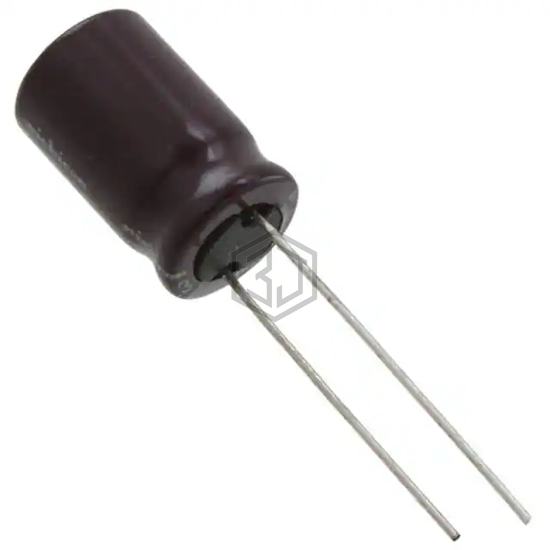

CAP ALUM 1UF 20% 450V RADIAL
UPJ2W010MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2,868
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 mA @ 120 Hz |
| Ripple Current @ High Frequency | 27.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2W010MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM2F010MPD1TA | Nichicon | CAP ALUM 1UF 20% 315V RADIAL | 84% | View |
| UPJ2V010MPD | Nichicon | CAP ALUM 1UF 20% 350V RADIAL | 82% | View |
| 105CKE400M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1UF 20% 400V RADIAL | 76% | View |
| 105CKE100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1UF 20% 100V RADIAL | 70% | View |
| 400BXC1MEFCT78X11.5 | Rubycon | CAP ALUM 1UF 20% 400V RADIAL | 69% | View |
| PEG124YA1100QE4 | KEMET | CAP ALUM 1UF 20% 450V AXIAL | 61% | View |
