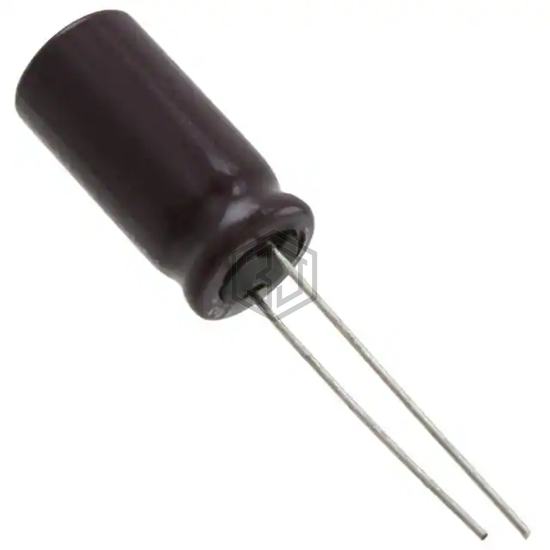

CAP ALUM 4.7UF 20% 350V RADIAL
UPJ2V4R7MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 4,922
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 104 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2V4R7MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS2F4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 315V RADIAL | 84% | View |
| 400PX4.7MEFC10X12.5 | Rubycon | CAP ALUM 4.7UF 20% 400V RADIAL | 80% | View |
| 250WXA4.7MEFCTA8X9 | Rubycon | CAP ALUM 4.7UF 20% 250V RADIAL | 79% | View |
| MAL211929478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 100V AXIAL | 59% | View |
| 672D475H100CC5C | Vishay Sprague | CAP ALUM 4.7UF 100V RADIAL | 56% | View |
| ULM4.7M50 | NTE Electronics, Inc | CAP ALUM 4.7UF 20% 50V RADIAL | 56% | View |
