CAP ALUM 4.7UF 20% 400V RADIAL

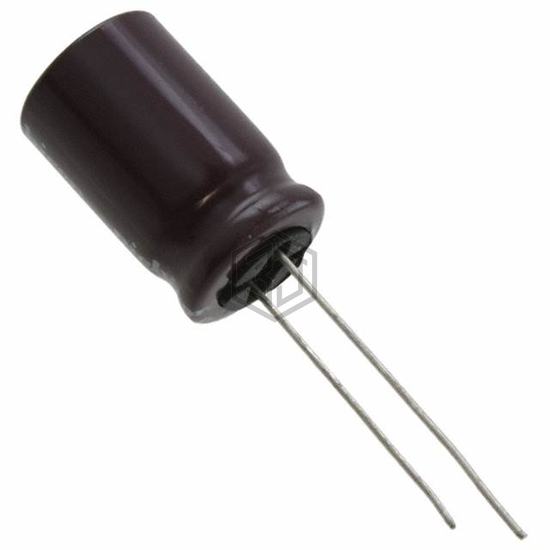

UPJ2G4R7MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,100
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 88 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2G4R7MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215296473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 400V RADIAL | 96% | View |
| UPW2D4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 200V RADIAL | 74% | View |
| ULD2D4R7MED1TD | Nichicon | CAP ALUM 4.7UF 20% 200V RADIAL | 74% | View |
| ESL475M250AGMAA | KEMET | CAP ALUM RAD 105C | 71% | View |
| MAL211669478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 100V RADIAL | 66% | View |
| 50YXH4.7MEFC5X11 | Rubycon | CAP ALUM 4.7UF 20% 50V RADIAL TH | 56% | View |
