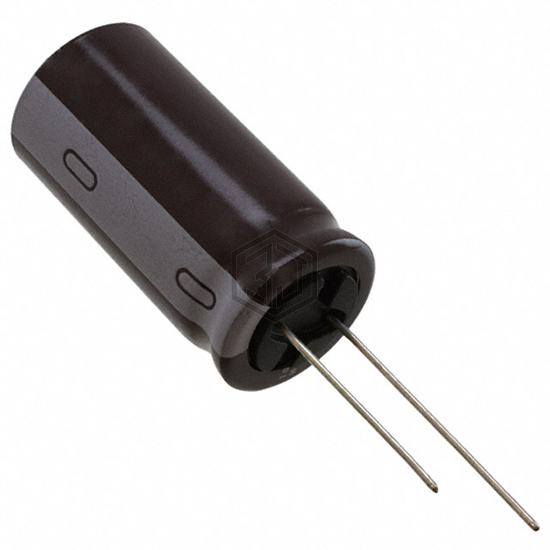

CAP ALUM 33UF 20% 400V RADIAL
UPJ2G330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 6,715
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 272 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2G330MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UAS2G330MHD1TN | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 87% | View |
| EGXE251ELL330MK25S | United Chemi-Con | CAP ALUM 33UF 20% 250V RADIAL | 83% | View |
| VJ2W330MRL1625A6 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 71% | View |
| 35YXS33MEFC5X11 | Rubycon | CAP ALUM 33UF 20% 35V RADIAL | 57% | View |
| VHT33M50 | NTE Electronics, Inc | CAP ALUM 33UF 20% 50V RADIAL | 56% | View |
| UCY2G330MHD1TO | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 55% | View |
