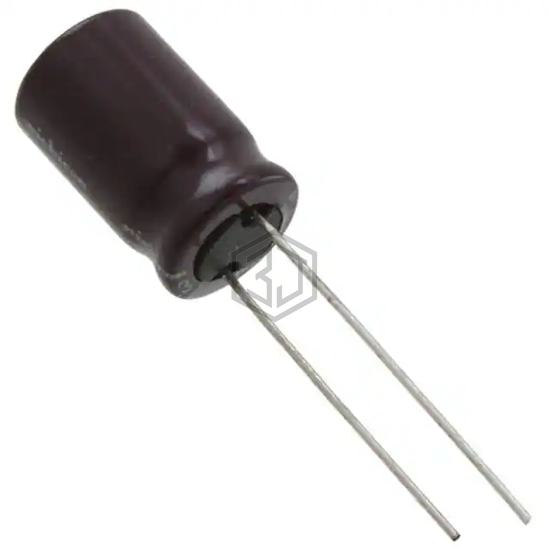

CAP ALUM 2.2UF 20% 400V RADIAL
UPJ2G2R2MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 1,382
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 44.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2G2R2MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS2E2R2MPD | Nichicon | CAP ALUM 2.2UF 20% 250V RADIAL | 84% | View |
| UPJ2E2R2MPD | Nichicon | CAP ALUM 2.2UF 20% 250V RADIAL | 76% | View |
| REA06112R2M160K | KYOCERA AVX | CAP ALUM 2.2UF 20% 160V RADIAL | 76% | View |
| UBX1V2R2MPL1TD | Nichicon | CAP ALUM 2.2UF 20% 35V RADIAL | 74% | View |
| MAL213839228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 100V AXIAL | 68% | View |
| SEK2R2M050ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 2.2UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for UPJ2G2R2MPD1TD and get a quote within 24 hours.
