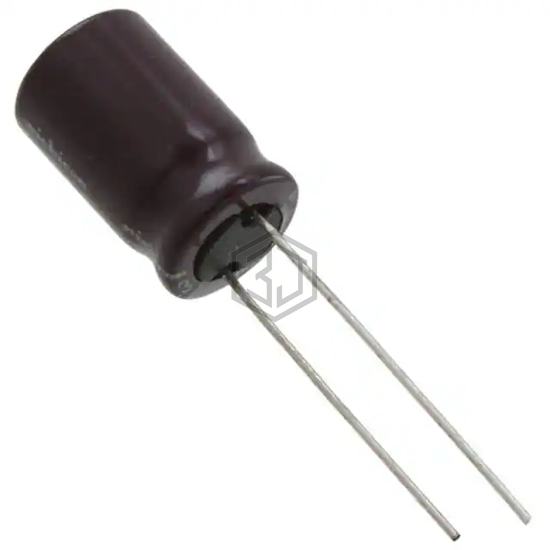

CAP ALUM 2.2UF 20% 400V RADIAL
UPJ2G2R2MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,079
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 44.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2G2R2MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ2V2R2MPD | Nichicon | CAP ALUM 2.2UF 20% 350V RADIAL | 92% | View |
| REA05112R2M100K | KYOCERA AVX | CAP ALUM 2.2UF 20% 100V RADIAL | 79% | View |
| REA06112R2M200K | KYOCERA AVX | CAP ALUM 2.2UF 20% 200V RADIAL | 76% | View |
| ECA-2AHG2R2 | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 100V RADIAL | 71% | View |
| PEG124VB1220QT1 | KEMET | CAP ALUM 2.2UF 400V AXIAL | 64% | View |
| MAL211838228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 63V AXIAL | 60% | View |
Submit your RFQ for UPJ2G2R2MPD and get a quote within 24 hours.
