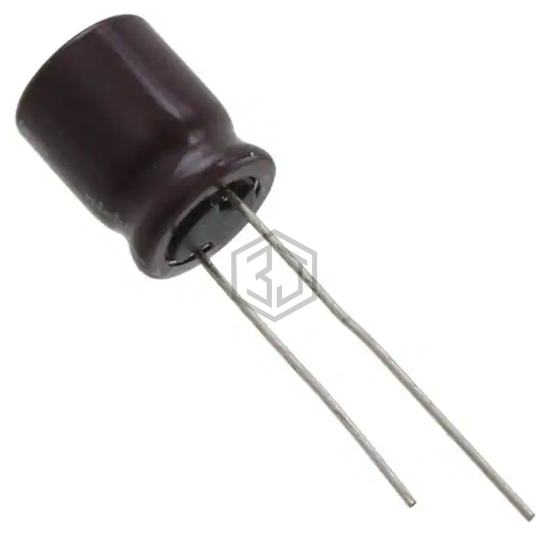

CAP ALUM 2.2UF 20% 315V RADIAL
UPJ2F2R2MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 7,579
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 32 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2F2R2MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM2E2R2MPD1TD | Nichicon | CAP ALUM 2.2UF 20% 250V RADIAL | 90% | View |
| 250PX2R2MEFC6.3X11 | Rubycon | CAP ALUM 2.2UF 20% 250V RADIAL | 88% | View |
| 250PX2.2MEFC6.3X11 | Rubycon | CAP ALUM 2.2UF 20% 250V RADIAL | 88% | View |
| 400LLE2.2MEFCT78X9 | Rubycon | CAP ALUM 2.2UF 20% 400V RADIAL | 86% | View |
| EL1H2R2MP20511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
| EEU-HD1H2R2B | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V RADIAL | 53% | View |
