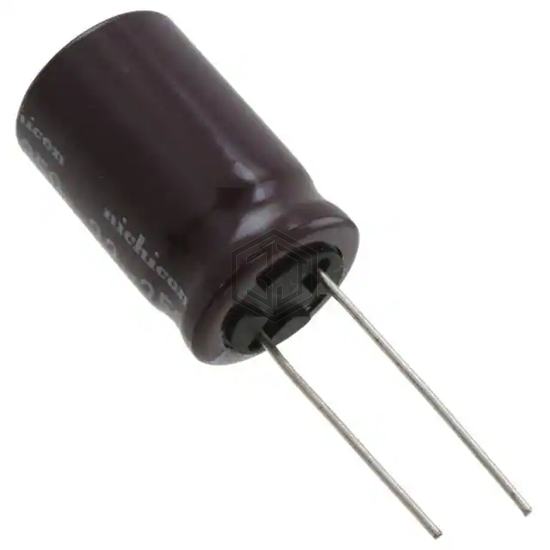

CAP ALUM 22UF 20% 315V RADIAL
UPJ2F220MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 489
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2F220MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00FE222OG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 350V RADIAL | 94% | View |
| UPJ2E220MHD1TN | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 93% | View |
| EEU-TA1H220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 76% | View |
| MAL211638229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V RADIAL | 64% | View |
| EKXL421ELL220MJ25S | United Chemi-Con | CAP ALUM 22UF 20% 420V RADIAL TH | 56% | View |
| 600D226F075DD5 | Vishay Sprague | CAP ALUM 22UF 75V AXIAL | 56% | View |
Submit your RFQ for UPJ2F220MHD1TN and get a quote within 24 hours.
