CAP ALUM 10UF 20% 315V RADIAL

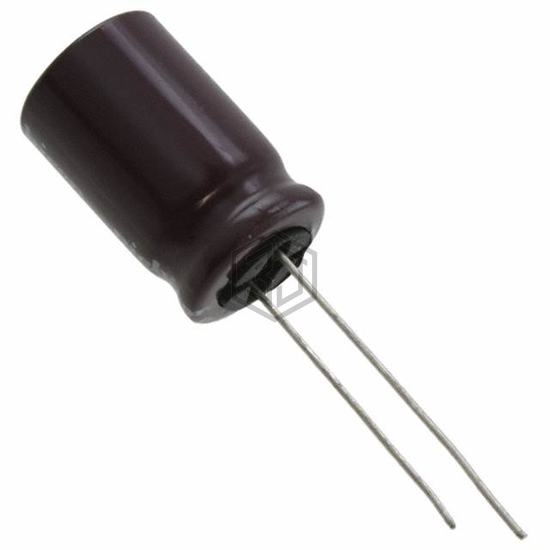

UPJ2F100MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 3,184
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 98 mA @ 120 Hz |
| Ripple Current @ High Frequency | 156.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2F100MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM2F100MHD | Nichicon | CAP ALUM 10UF 20% 315V RADIAL | 100% | View |
| REA1016100M250K | KYOCERA AVX | CAP ALUM 10UF 20% 250V RADIAL TH | 90% | View |
| 200YXA10MEFCCA10X12.5 | Rubycon | CAP ALUM 10UF 20% 200V RADIAL | 75% | View |
| UBT2A100MPD1TA | Nichicon | CAP ALUM 10UF 20% 100V RADIAL | 71% | View |
| EKXG201ELL100MJ16S | United Chemi-Con | CAP ALUM 10UF 20% 200V RADIAL | 64% | View |
| MAL214279109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for UPJ2F100MHD and get a quote within 24 hours.
