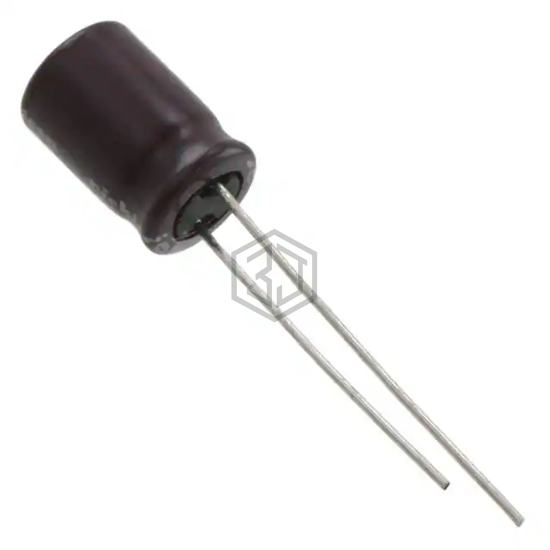

CAP ALUM 1UF 20% 315V RADIAL
UPJ2F010MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 7,861
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2F010MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ2V010MED1TA | Nichicon | CAP ALUM 1UF 20% 350V RADIAL | 85% | View |
| UVZ2V010MED | Nichicon | CAP ALUM 1UF 20% 350V RADIAL | 85% | View |
| 105TMA100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1UF 20% 100V AXIAL | 70% | View |
| ED1H010MP20511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
| 50YXM1MEFRTA5X11 | Rubycon | CAP ALUM 1UF 20% 50V RADIAL | 60% | View |
| 50YXM1MEFRT15X11 | Rubycon | CAP ALUM 1UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for UPJ2F010MPD1TA and get a quote within 24 hours.
