CAP ALUM 33UF 20% 250V RADIAL

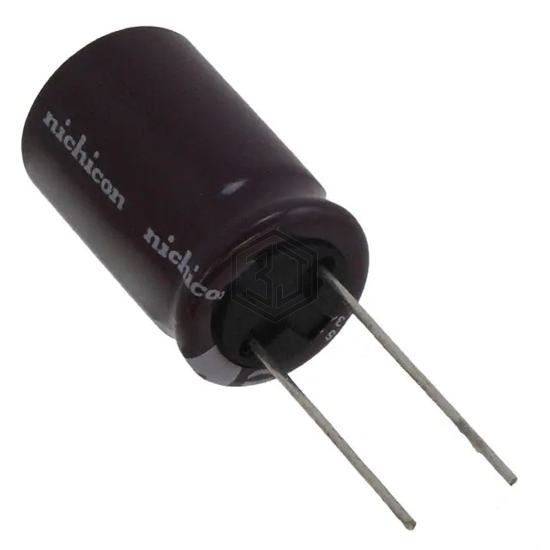

UPJ2E330MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 9,219
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 288 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2E330MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ201ELL330MK15S | United Chemi-Con | CAP ALUM 33UF 20% 200V RADIAL | 86% | View |
| 200YXF33MEFCG412.5X25 | Rubycon | CAP ALUM 33UF 20% 200V RADIAL | 73% | View |
| ELXV101ELL330MJ16S | United Chemi-Con | CAP ALUM 33UF 20% 100V RADIAL | 65% | View |
| MAL211829339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V AXIAL | 63% | View |
| UTS0J331MPD1TA | Nichicon | CAP ALUM 33UF 20% 6.3V RADIAL | 63% | View |
| ECA-1HHG330I | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 51% | View |
