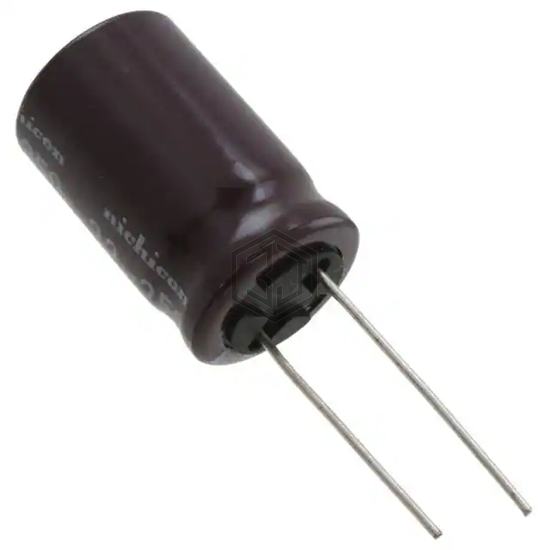

CAP ALUM 22UF 20% 250V RADIAL
UPJ2E220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 4,597
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2E220MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1V220MPL1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 65% | View |
| MAL214237229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 450V RADIAL | 62% | View |
| UBX2A220MPL1TD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 61% | View |
| MAL211938229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 63V AXIAL | 61% | View |
| 672D226F100CD4D | Vishay Sprague | CAP ALUM 22UF 100V RADIAL | 56% | View |
| UBT1K220MPD1TA | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 51% | View |
