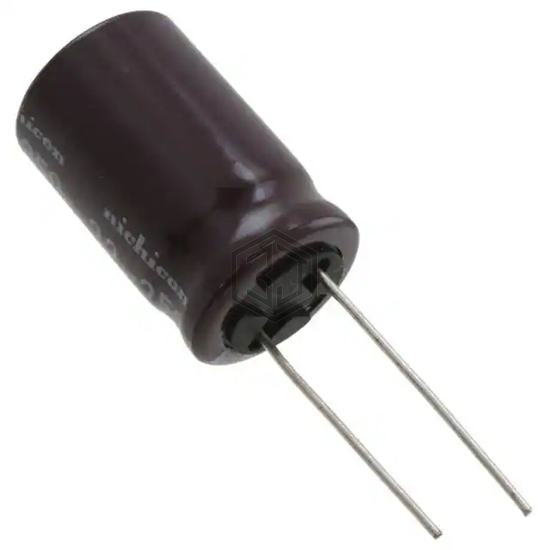

CAP ALUM 33UF 20% 200V RADIAL
UPJ2D330MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,735
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 288 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2D330MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT2D330MHD8TO | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 96% | View |
| UBX2D330MHL1TO | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 90% | View |
| 200PX33MEFCT810X20 | Rubycon | CAP ALUM 33UF 20% 200V RADIAL | 86% | View |
| EEU-FC1H330H | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 75% | View |
| EEU-FC2A330L | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V RADIAL | 70% | View |
| MAL215266339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 400V RADIAL | 70% | View |
