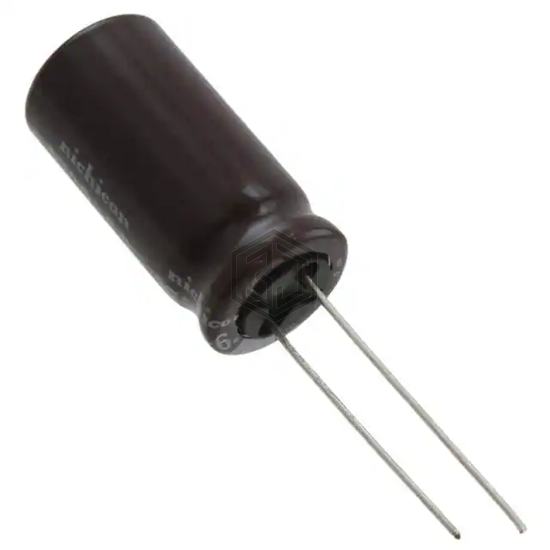

CAP ALUM 22UF 20% 200V RADIAL
UPJ2D220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,649
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 145 mA @ 120 Hz |
| Ripple Current @ High Frequency | 232 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2D220MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200WXA22MEFC12.5X16 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 98% | View |
| 100YXM22MEFRT78X11.5 | Rubycon | CAP ALUM 22UF 20% 100V RADIAL | 75% | View |
| UBW1H220MPD1TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 74% | View |
| EEU-TA1H220BJ | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 74% | View |
| 50YXJ22MCE5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 64% | View |
| URZ2G220MHD6TN | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 64% | View |
