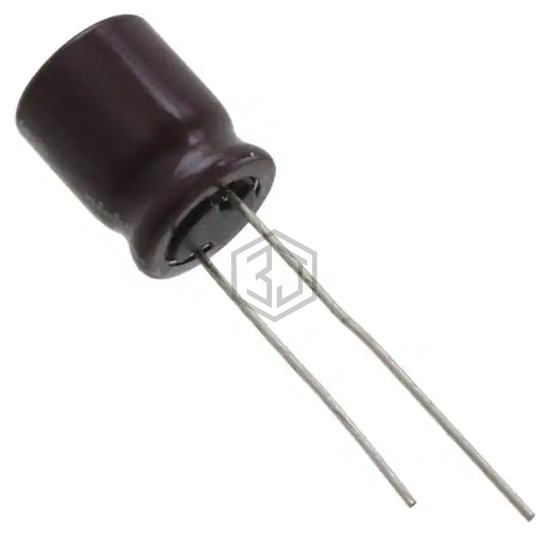

CAP ALUM 4.7UF 20% 160V RADIAL
UPJ2C4R7MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 1,107
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 57 mA @ 120 Hz |
| Ripple Current @ High Frequency | 91.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2C4R7MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200WXA4.7MEFCTA8X9 | Rubycon | CAP ALUM 4.7UF 20% 200V RADIAL | 89% | View |
| EKMG201ELL4R7MHB5D | United Chemi-Con | CAP ALUM 4.7UF 20% 200V RADIAL | 83% | View |
| EEU-FC1H4R7H | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V RADIAL | 76% | View |
| 50RX304.7MTA8X11.5 | Rubycon | CAP ALUM 4.7UF 20% 50V RADIAL | 69% | View |
| MAL214237478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 450V RADIAL | 65% | View |
| EG1E4R7MNN0511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
Submit your RFQ for UPJ2C4R7MPD1TD and get a quote within 24 hours.
