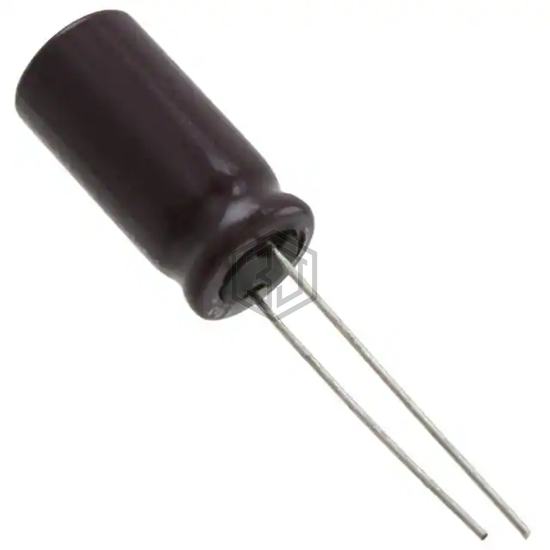

CAP ALUM 56UF 20% 100V RADIAL
UPJ2A560MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,005
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 274 mA @ 120 Hz |
| Ripple Current @ High Frequency | 456 mA @ 10 kHz |
| Impedance | 240 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2A560MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1K560MPD1TD | Nichicon | CAP ALUM 56UF 20% 80V RADIAL | 87% | View |
| UPM1K560MPD6TD | Nichicon | CAP ALUM 56UF 20% 80V RADIAL | 85% | View |
| UPJ1J560MPD6 | Nichicon | CAP ALUM 56UF 20% 63V RADIAL | 83% | View |
| UPJ1J560MPD6TD | Nichicon | CAP ALUM 56UF 20% 63V RADIAL | 83% | View |
| 601D566F150GE1 | Vishay Sprague | CAP ALUM 56UF 150V AXIAL | 72% | View |
| 630D566M035DC2A | Vishay Sprague | CAP ALUM 56UF 20% 35V AXIAL | 56% | View |
