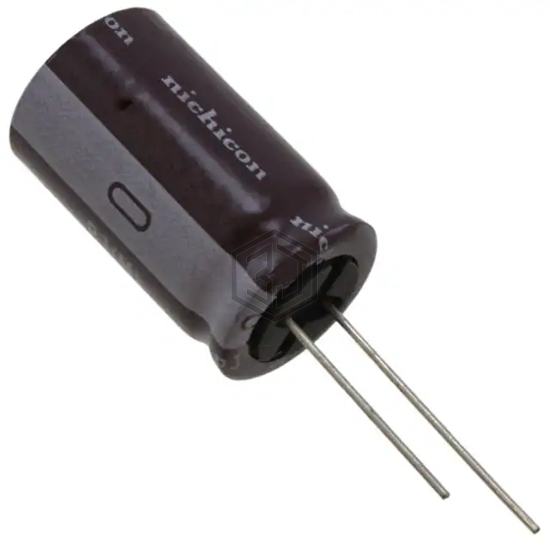

CAP ALUM 390UF 20% 100V RADIAL
UPJ2A391MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.24 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 10 kHz |
| Impedance | 62 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2A391MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV101ELL391ML35S | United Chemi-Con | CAP ALUM 390UF 20% 100V RADIAL | 89% | View |
| EEU-FC1J391SB | Panasonic Electronic Components | CAP ALUM 390UF 20% 63V RADIAL | 82% | View |
| EEU-FC1H391B | Panasonic Electronic Components | CAP ALUM 390UF 20% 50V RADIAL | 78% | View |
| UPA1V391MPD6 | Nichicon | CAP ALUM 390UF 20% 35V RADIAL | 68% | View |
| 672D397H040DS5C | Vishay Sprague | CAP ALUM 390UF 40V RADIAL | 56% | View |
| 600D397G030DX4 | Vishay Sprague | CAP ALUM 390UF 30V AXIAL | 56% | View |
