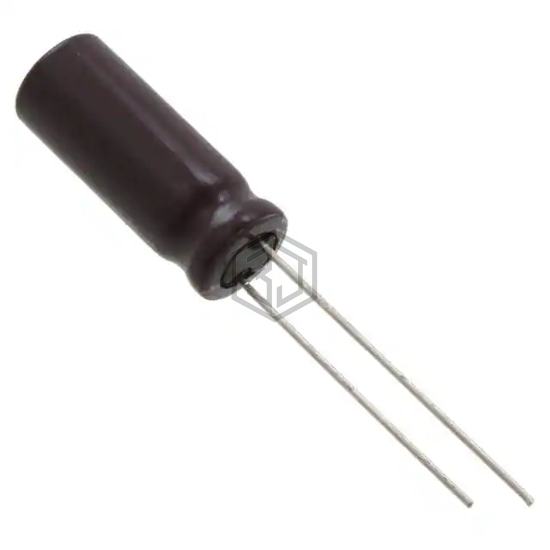

CAP ALUM 39UF 20% 100V RADIAL
UPJ2A390MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8,410
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 202 mA @ 120 Hz |
| Ripple Current @ High Frequency | 352 mA @ 10 kHz |
| Impedance | 330 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2A390MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2A390MPD6TD | Nichicon | CAP ALUM 39UF 20% 100V RADIAL | 97% | View |
| UPM1K390MPD6TD | Nichicon | CAP ALUM 39UF 20% 80V RADIAL | 86% | View |
| LXZ63VB39RM6X15LL | United Chemi-Con | CAP ALUM 39UF 20% 63V RADIAL | 68% | View |
| 672D396H250FV5C | Vishay Sprague | CAP ALUM 39UF 250V RADIAL | 56% | View |
| 600D396F200DX4 | Vishay Sprague | CAP ALUM 39UF 200V AXIAL | 56% | View |
| ELXV500ETD390MFB5D | United Chemi-Con | CAP ALUM 39UF 20% 50V RADIAL | 54% | View |
Submit your RFQ for UPJ2A390MPD and get a quote within 24 hours.
