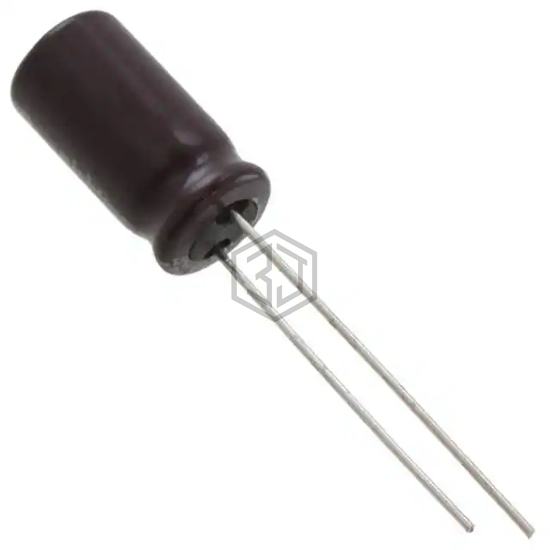

CAP ALUM 33UF 20% 100V RADIAL
UPJ2A330MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,114
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 169 mA @ 120 Hz |
| Ripple Current @ High Frequency | 299 mA @ 10 kHz |
| Impedance | 380 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2A330MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ2A330MPH | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 90% | View |
| 100PX33MEFCT78X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 87% | View |
| VPR340U100E1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 34UF 100V RADIAL | 80% | View |
| UBX2A330MPL1TD | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 77% | View |
| B41896C6336M000 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 71% | View |
| 672D336H020BB5C | Vishay Sprague | CAP ALUM 33UF 20V RADIAL | 56% | View |
Submit your RFQ for UPJ2A330MPD and get a quote within 24 hours.
