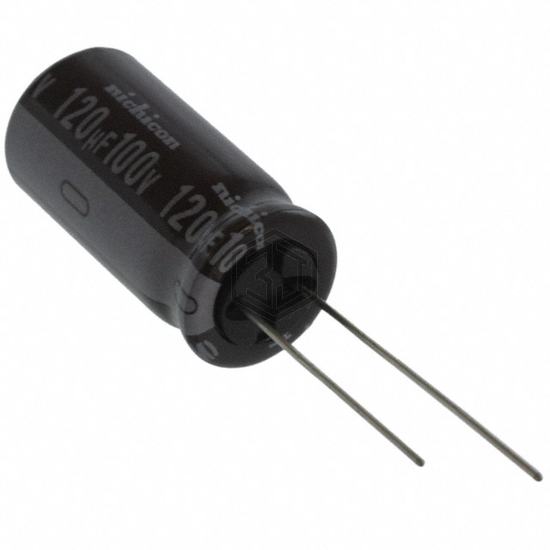

CAP ALUM 120UF 20% 100V RADIAL
UPJ2A121MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,636
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 519 mA @ 120 Hz |
| Ripple Current @ High Frequency | 774 mA @ 10 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2A121MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV101ELL121ML15S | United Chemi-Con | CAP ALUM 120UF 20% 100V RADIAL | 100% | View |
| UPM1K121MHD6TN | Nichicon | CAP ALUM 120UF 20% 80V RADIAL | 81% | View |
| UPM1H121MPD | Nichicon | CAP ALUM 120UF 20% 50V RADIAL | 80% | View |
| 860080574008 | Würth Elektronik | CAP ALUM 120UF 20% 35V RADIAL | 69% | View |
| MAL213630121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 35V RADIAL | 62% | View |
| B41858D7127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 35V RADIAL | 51% | View |
Submit your RFQ for UPJ2A121MHD and get a quote within 24 hours.
