CAP ALUM 680UF 20% 35V RADIAL

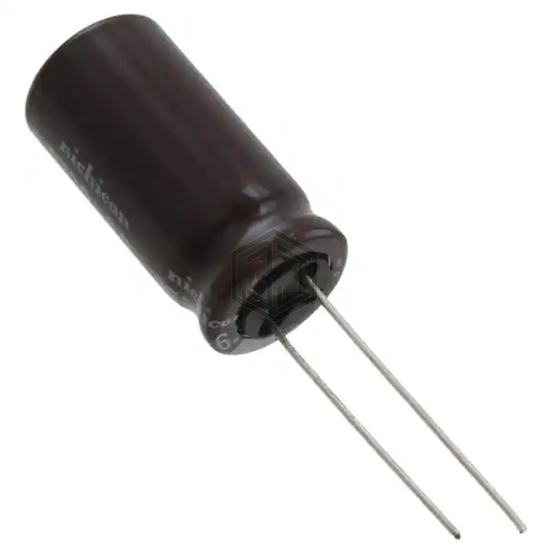

UPJ1V681MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 155
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.37 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.66 A @ 10 kHz |
| Impedance | 48 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1V681MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D687M050ER4DE3 | Vishay Sprague | CAP ALUM 680UF 20% 50V RADIAL | 77% | View |
| UPA1E681MPD1TD | Nichicon | CAP ALUM 680UF 20% 25V RADIAL | 77% | View |
| EEU-FP1E681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 25V RADIAL | 76% | View |
| MAL214638681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 71% | View |
| MAL226050681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 67% | View |
| 25WXA680MEFC12.5X16 | Rubycon | CAP ALUM 680UF 20% 25V RADIAL | 53% | View |
Submit your RFQ for UPJ1V681MHD and get a quote within 24 hours.
