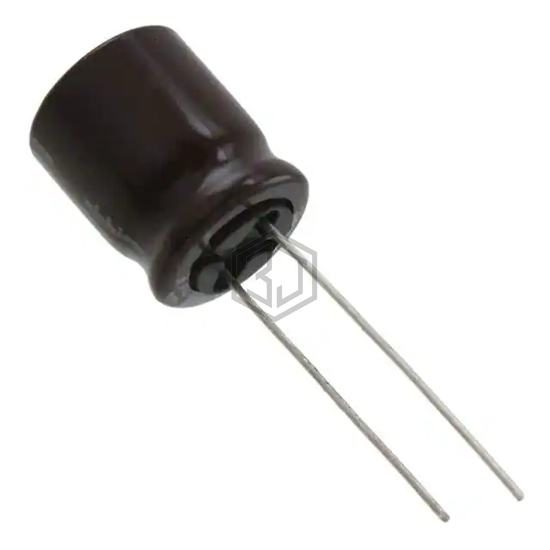

CAP ALUM 390UF 20% 35V RADIAL
UPJ1V391MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,127
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.06 A @ 10 kHz |
| Impedance | 96 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1V391MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV350EC3391MJ25S | United Chemi-Con | CAP ALUM 390UF 20% 35V RADIAL | 83% | View |
| 678D397M025DG4D | Vishay Sprague | CAP ALUM 390UF 20% 25V RADIAL | 78% | View |
| UPA1E391MPD1TD | Nichicon | CAP ALUM 390UF 20% 25V RADIAL | 76% | View |
| ELXZ500ELL391MK20S | United Chemi-Con | CAP ALUM 390UF 20% 50V RADIAL | 75% | View |
| EEU-FC1H391S | Panasonic Electronic Components | CAP ALUM 390UF 20% 50V RADIAL | 72% | View |
| EEU-FK1C391B | Panasonic Electronic Components | CAP ALUM 390UF 20% 16V RADIAL TH | 59% | View |
Submit your RFQ for UPJ1V391MHD6 and get a quote within 24 hours.
